Microservices and Editors

6 minute read

Microservices and Editors

When’s the last time you looked into how your editor works ? I don’t mean when you downloaded a few extensions and glanced a few themes.

Editors

DISCLAIMER!

This article tries to contrast the Microservices architecture with current editor ecosystem. This is not a strict comparison, it is only done to explore how editors work in this day and age.

Vim anyone ?

Neovim is one such editor I have used in my entire programming journey. It is not like your standard editor. It is not like any other editors.

But this post is not about neovim, this post is to explore how your editors work. This post is applicable to most modern editors, including

  • Emacs
  • Neovim/Vim
  • VSCode
  • Atom (RIP, you will be missed)
  • Helix

Back to 2015

Consider you are Microsoft, you just released a Open Source editor Visual Studio Code. You are trying to build it’s plugin ecosystem from scratch.

Visual Studio Code will be referred as VSCode from now on.

VSCode is not a IDE, it is a editor. It does not target any specific language/technology. Thus it needs to fit for all technologies and languages present out there.

Microsoft needed to develop plugins and integrations for all those technologies by themselves. Atleast for the first few years, until it’s adoption goes high.

VSCode

Enter Microservices

Microsoft had a brilliant idea, why bother implementing intellisense for multiple languages.

Why not separate the intellisense from the editor ?

This allows the editor to focus on being a great editor and it only needs to communicate with a external service which handles intellisense.

Microservices anyone ?

This idea of multiple services working together to complete a application can be though of as Microservices Architecture. The idea that instead of building a web application/server that handles everything, we build small services that excel in handling one single service.

That service can be either authentication or database operations etc. Every service communicates with each other and each service can be scaled separately.

If you want a more formal introduction, see here.

Microservices and Editors

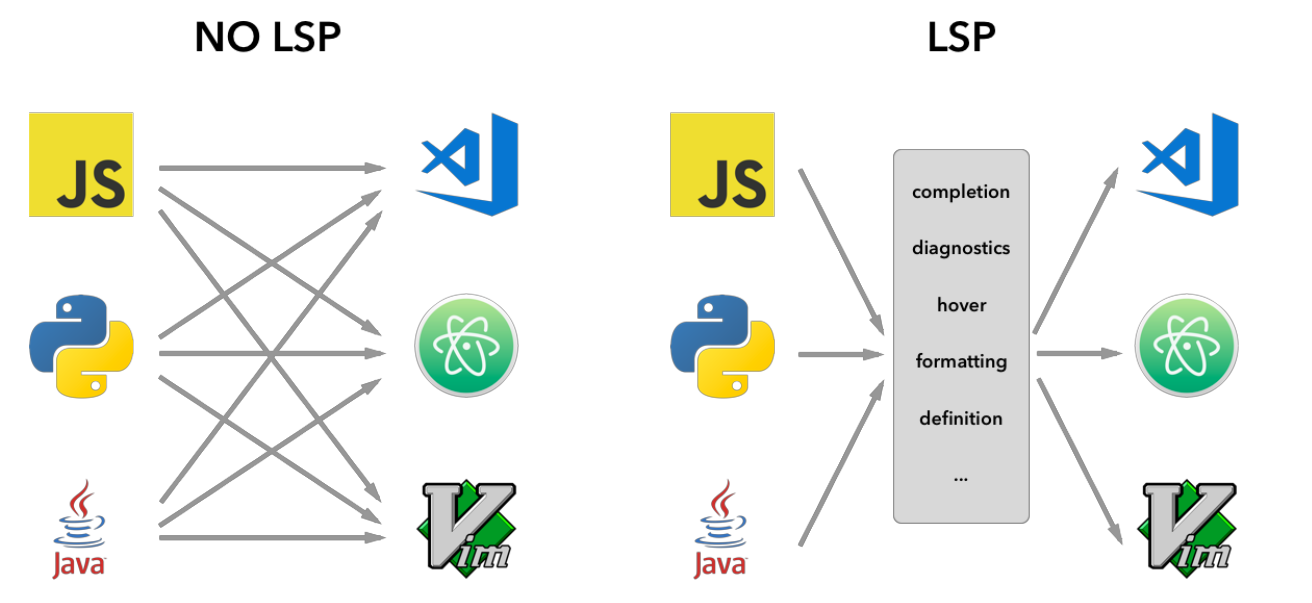

Microsoft proposed the Language Server Protocol (LSP), every language will have a associated server. This server will be responsible for providing language features like formatting, autoimport, autocompletion, documentation etc. The editor will only need to know which language connects with which server. The server and the client can talk using JSON-RPC protocol.

This idea was proposed to the Open Source Community by Microsoft in 2016. The Open Source community relied on editors like neovim, Emacs, Atom etc. The Open Source community accepted, thus LSP was born.

This meant all the editors had to build a LSP client which was embedded into the editor. Other than that they did not require any effort to support intellisense features.

That responsibility was transferred to the people developing the Language Servers.

LSP

Six Years Later

Today almost all text editors implement LSP and each language has their well known language server. When you install a extension for a specific language on VSCode, it only installs a server for that language. VSCode already knew how to show intellisense features, it just didn’t know what to show.

The server starts communicating with VSCode for intellisense and boom!

There is a server for almost all languages. Most modern languages like Go, Rust and TypeScript come with a language server packaged with their compiler/interpreter.

Even COBOL has it’s own Language Server.

Some of the popular editors support LSP are

  • Emacs
  • neovim
  • Visual Studio Code
  • Helix
  • Atom
  • Sublime Text

Some of the most popular languages and their Language Servers are

  • Python (PyRight)
  • TypeScript (tsserver)
  • Golang (gopls)
  • Rust (rust-analysis-server)

Some of the niche languages which have their own servers are

  • COBOL
  • FOTRAN
  • JSON/YAML/TOML
  • Assembly!! (PowerPC)
  • VHDL/Verilog

The official LSP documentation can be found here.

Syntax Highlighting

The second obstacle when designing editors is Syntax Highlighting. Beginners adore it and pros hate it. But one can’t deny it makes code look sexy. This problem can only be understood by understanding how syntax highlighting works

Syntax highlighting in all editors is done by regex matching. regex means Regular Expressions. It is like a type of language for matching sequence of characters.

The study of how to make a regular expression engine and parsing them leads to complicated theory of automata. It is quite a difficult task to make a efficient and accurate regex engine, although many pre-built implementations exist. Almost every programming language has a regex matcher in it’s standard library.

But regex matching is still quite slow and does not actually highlight syntactically. You might have encountered this while opening a huge file, it takes a second for the syntax highlighting to appear. It cannot actually understand the code, just matches according to the pattern defined.

Multi-lingual environments, like JSX, HTML, Markdown present more challenges to regex based syntax highlighting. These require multiple syntax highlighters in a single file. Which is slow and complex to implement.

Syntax Highlighting

Atom

The Atom developers were facing this exact problem. They came up with a solution, why not outsource this syntax highlighting to a service!

The result was tree-sitter, a incremental parsing library. This is written in C and is super fast, parsing a languages into a syntax tree character-wise! This was again extracted and shared with the Open Source Community.

It might be the only relic left of Atom in modern editors, after it’s death!

Fun Fact: GitHub uses tree-sitter to syntax highlight code on your repositories!

Tree Sitter

Tree Sitter allows for syntax highlighting being provided by a separate service. In more recent versions it provides indentation support. Modal editors like neo[vim] can provide text-object support efficiently using treesitter.

Most languages only need to program a parser according to the Tree Sitter specifications and it automatically builds and compiles the grammar needed for the language.

It’s technical details can be found here.

VSCode does not support Tree Sitter yet, and still follows RegEX. But there are proposals to integrate it using extensions and it might be right around the corner.

Tree Sitter

Debugging

Just like LSP, Microsoft pioneered the idea that debugging was needed to be separated from the editor.

For exactly that reason, the Debug Adapter Protocol was born. Just like LSP it provides a separate debugger which communicates with the editor using DAP.

It is quite new and it’s adoption is on the way. Currently almost all the modern editors support DAP. Each and every language either comes with a DAP enabled debugger or a third-party program provides it.

It’s technical details can be found here

It’s little adoption might be the fact that debuggers were already separate from the editors. All languages have their own separate debuggers, either provided by the authors of the language or the community. This meant, people already have tightly integrated workflows for debugging.

  • C (gdb)
  • Python (pdb)

DAP

Microservices

You must have noticed something, all the features except text editing have been outsourced.

Thus the text editor has been microserviced instead of the previously monolith structure. This is the reason for the speed modern editors provide, while providing such advanced features.

While this is not a perfect example for a microservice architecture it is not a bad one.

The advantage of all editors built like these are

  • Better editing functionality
  • All editors have same syntax highlighting, intellisense and debugging capabilities.
  • Very fast code feedback.
  • Easily recover from crashes and errors.
  • More fine control over code features.

Gone are the days editors are popular, because of their language support. Now editors can focus on making text editing efficient and productive.

Language developers can focus on making their language easily written on multiple editors simultaenously.

If you are feeling adventurous, you might wanna try other editors for their editing features. Here is a list of editors with their editing features you might wanna try out:

! Beware by being adventurous you might be caught in the middle of the Editor Wars. Take your next steps very carefully!

  • Neo[vim] - Modal editing with Action-Object methodology
  • Kakoune/Helix - Modal editing with Object-Action methodology.
  • Emacs - Macro editing with lisp based configuration.
  • Visual Studio Code - Beginner Friendly, simple text editor for noobs.

Goodbye!
